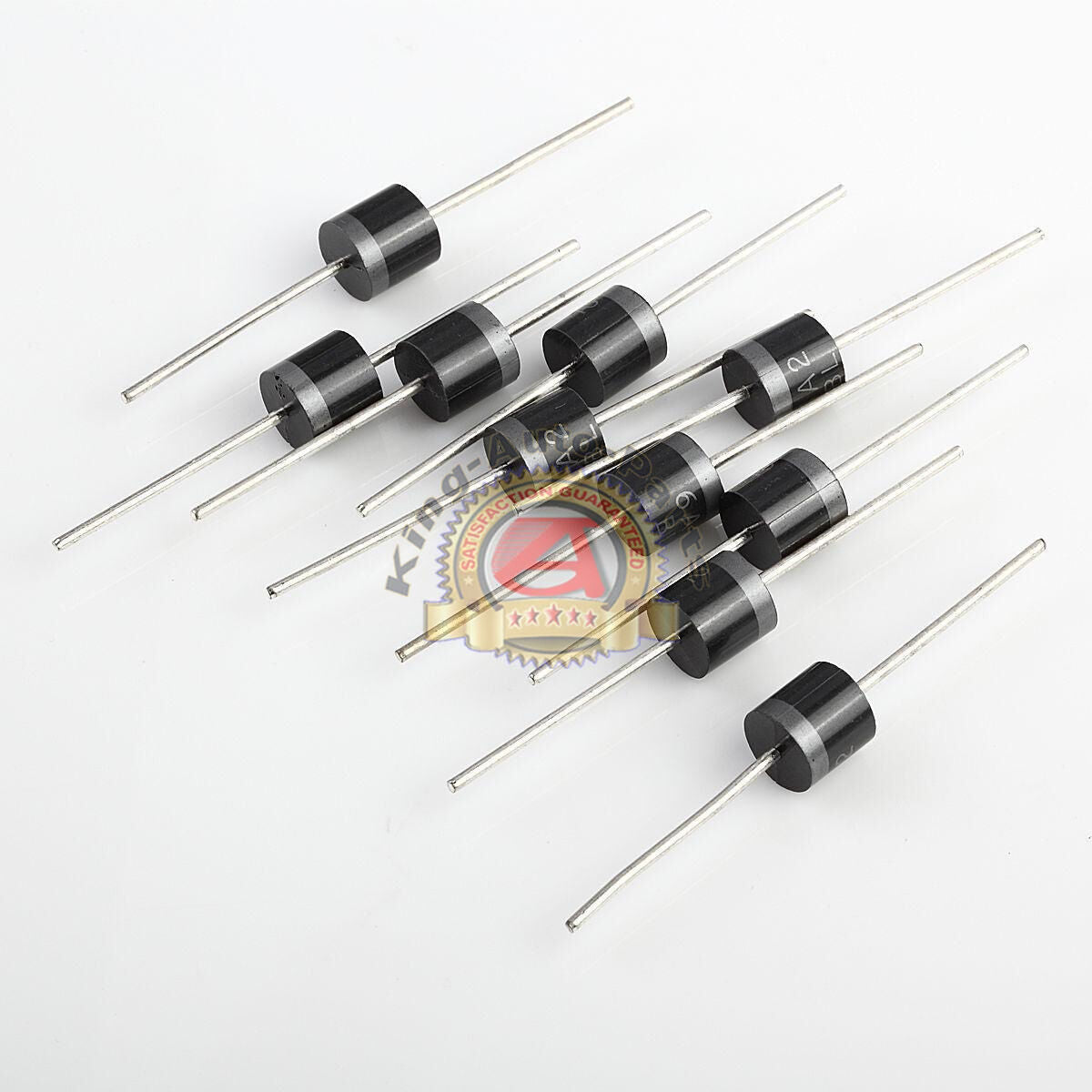

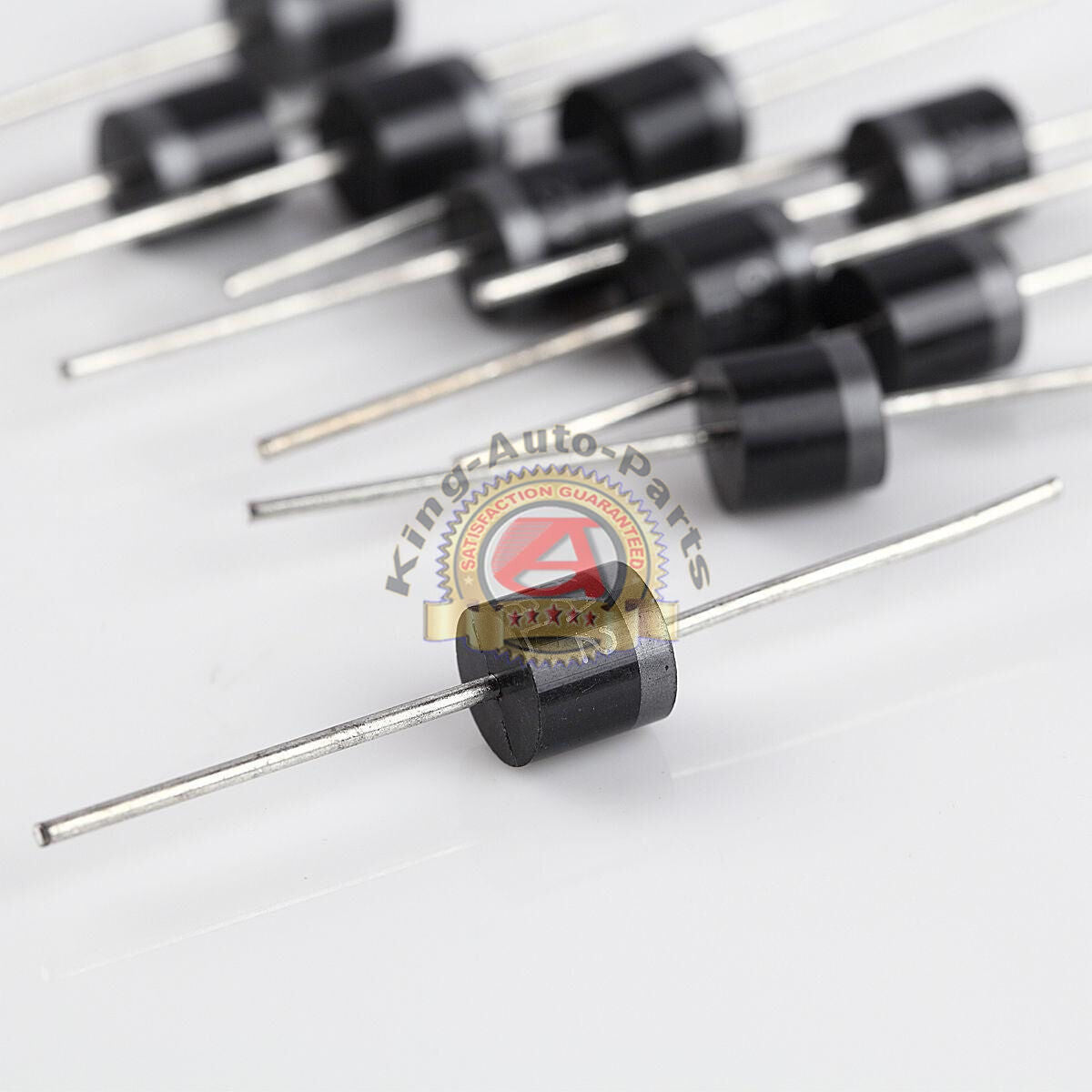

6A1 6Amp 1000Volt High Power Diode 10pcs

Symbols

6A05

6A1

6A2

6A4

6A6

6A8

6A10

Units

Max Repetitive Peak Reverse Voltage

Vrrm

50

100

200

400

600

800

1000

Volts

Max R.M.S. Voltage

Vrms

35

70

140

280

420

560

700

Volts

Max DC Blocking Voltage

Vdc

50

100

200

400

600

800

1000

Volts

Max Average Forward Rectified Current 9.5mm lead lengh @ T 60C

I(AV)

6.00

Amps

Peak Forward Surge Current 8.3ms single half sine wave superimposed on rated load.(jedec method)

Ifsm

300

Amps

Max Instanceouse Forward Voltage @ 6A

Vf

0.95

Volts

Max DC Reverse Current Rated DC Blocking @ 25C & 100C

Ig

10 & 1.0

uAmps & mAmps

Max Full Load Reverse Current Full Cycle

Ir(av)

1

mAmps

Typical Junction Capacitance

Cj

150

pf

Typical Thermal Resistance

Rja

10

c/W

Operatonal Junction Tem Range

55 minus to 150

C
